Description
Product advantage

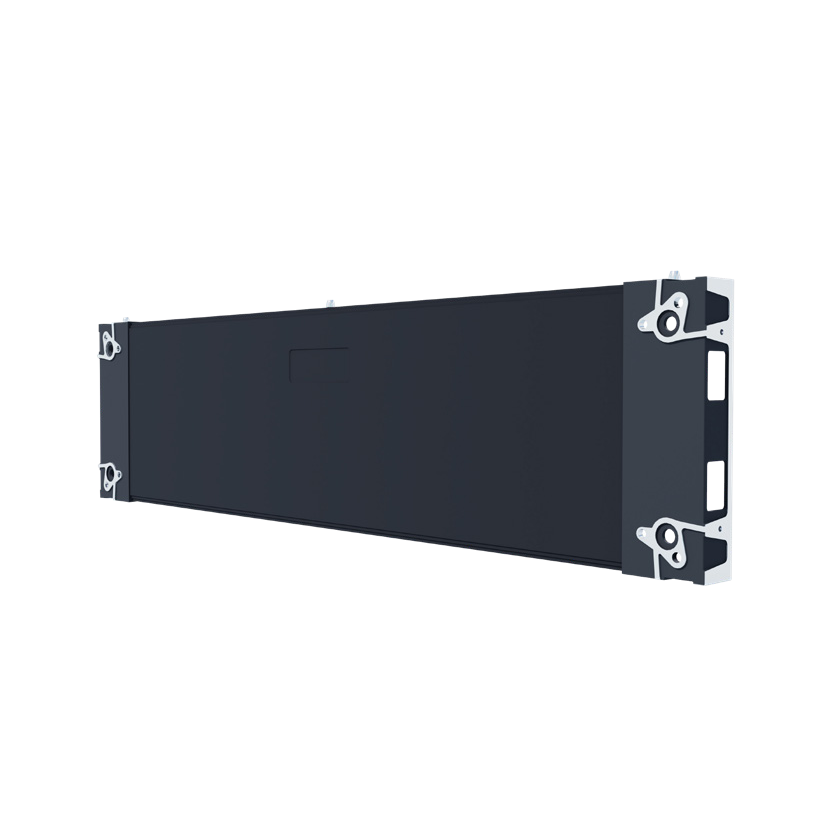

Ultra-slim cabinet: 4.8kg weight, 40mm thickness.
45° beveled edges for seamless right-angle splicing.
Die-cast + extruded aluminum, flexible sizes.
Easy to install and maintain.
Application scenario
Technical parameter
| Specification | P1.953 | P2.5 |
|---|---|---|
| LED Configuration | 3 in 1 | 3 in 1 |
| LED Type | SMD 1515 | SMD 1515 |
| Brightness | ≥800 nit | ≥1000 nit |
| Grayscale | 14–16 bit | 14–16 bit |
| Refresh Rate | 3840 Hz | 3840 Hz |
| Pixel Density (dots/m²) | 262,144 | 160,000 |
| Contrast Ratio | 5000:1 | 5000:1 |
| Cabinet Size (mm) | 1000/750/500 × 250 | 1000/750/500 × 250 |
| Module Size (mm) | 250 × 250 | 250 × 250 |
| Weight per Cabinet (kg) | 4.8 | 4.8 |
| Flatness Tolerance (mm) | <0.1 | <0.1 |
| Lifespan (hours) | ≥100,000 | ≥100,000 |
| Viewing Angle (H°/V°) | 160 / 160 | 160 / 160 |
| Peak Power Consumption | 550 W/m² | 478 W/m² |
| Average Power Consumption | 182 W/m² | 158 W/m² |
